LA200
- Fits to EN and ANSI seal chambers
- Optimized, narrow width seal face design
- Compact axial and radial dimensions
Feature
- Single seal
- Unbalanced
- Independent of direction of rotation
- Rotating multiple springs
Product specification example
Materials
Seal face: Carbon graphite
Seat: Silicon carbide (Q1)
Secondary seals: FKM (V)
Metal parts: CrNiMo steel 316（G)
Operating range
Pressure: p = vaccum … 12 bar (174 PSI)
Temperature: t = -20 °C … 200 °C (-4 °F … 392 °F)
Sliding velocity: vg = 20 m/s (66 ft/s)
Viscosity: … 0.5 Pa·s
Solids content: … 0.5wt. %
Recommended applications
Chemical industry
Refining technology
Petrochemical industry
Process industry
Acids
Alkaline solutions
Salt solutions
Low viscosity oils
Monomers
Hydrocarbons
Water
Seawater
Process pumps

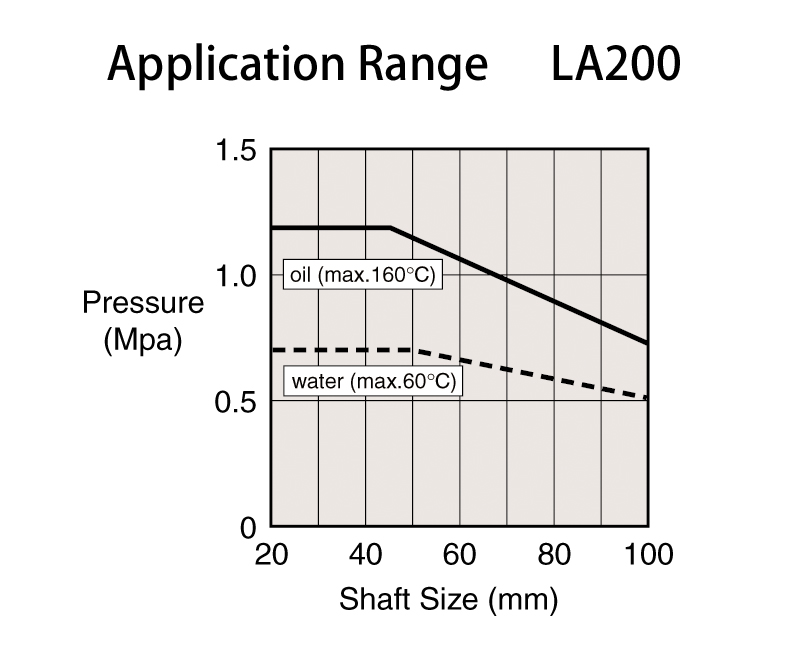

Applicable ranges shown in the product introduction are limit values for each standard material.
Applicable ranges, performance data and figures can serve only as a guide for selection and therefore in actual use there will be some cases where general specifications cannot be applied due to unknown factors or constraints.
Please check the applicability before use.
The contents are subject to change without notice for improvement.
Applicable ranges, performance data and figures can serve only as a guide for selection and therefore in actual use there will be some cases where general specifications cannot be applied due to unknown factors or constraints.
Please check the applicability before use.
The contents are subject to change without notice for improvement.
