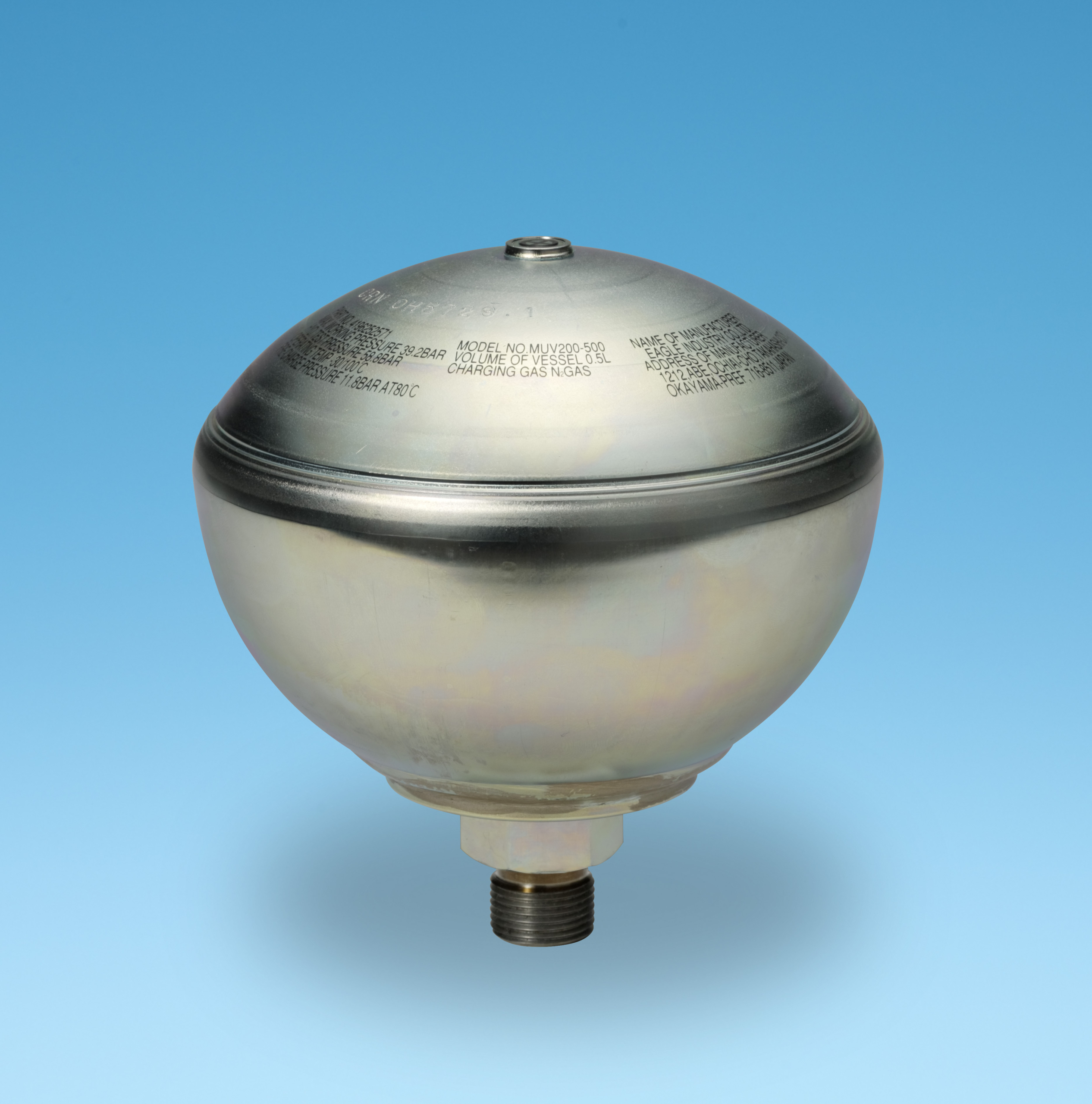

Diaphragm Type Accumulator
- Lightweight and small-volume spherical diaphragm type accumulators
- Widely used in general industrial machineries, construction machineries, power plants, chemical plants and automobiles.
Feature
The body, being spherical in shape and welded, is thin-walled.
The diaphragm with a small surface area and increased thickness exhibits improved performance in gas retentivity.
The MUV series incorporates a plastic laminated diaphragm produced by polymer materials and machining technologies. This diaphragm greatly improves the accumulator’s performance in gas retentivity.
Select these accumulators to meet your needs to make your systems long-life and maintenance-free.
Product specification example
MU: spherical accumulator with rubber diaphragm
MUV: spherical accumulator with rubber-resin layered diaphragm. Long-life type retaining at least 10 times as much gas as the MU type.
| Type | Max. Working Pressure (MPa) | Nominal Gas Volume (cm3) | ||
|---|---|---|---|---|
| MU | 6.86 | 300 500 | ||
| 14.7 | 700 | |||
| MUV | 6.86 | 150 500 | ||
